Spraytech AWTF scrubber


Contact us for more information

foto 2
AWTF scrubber
AWTF scrubber

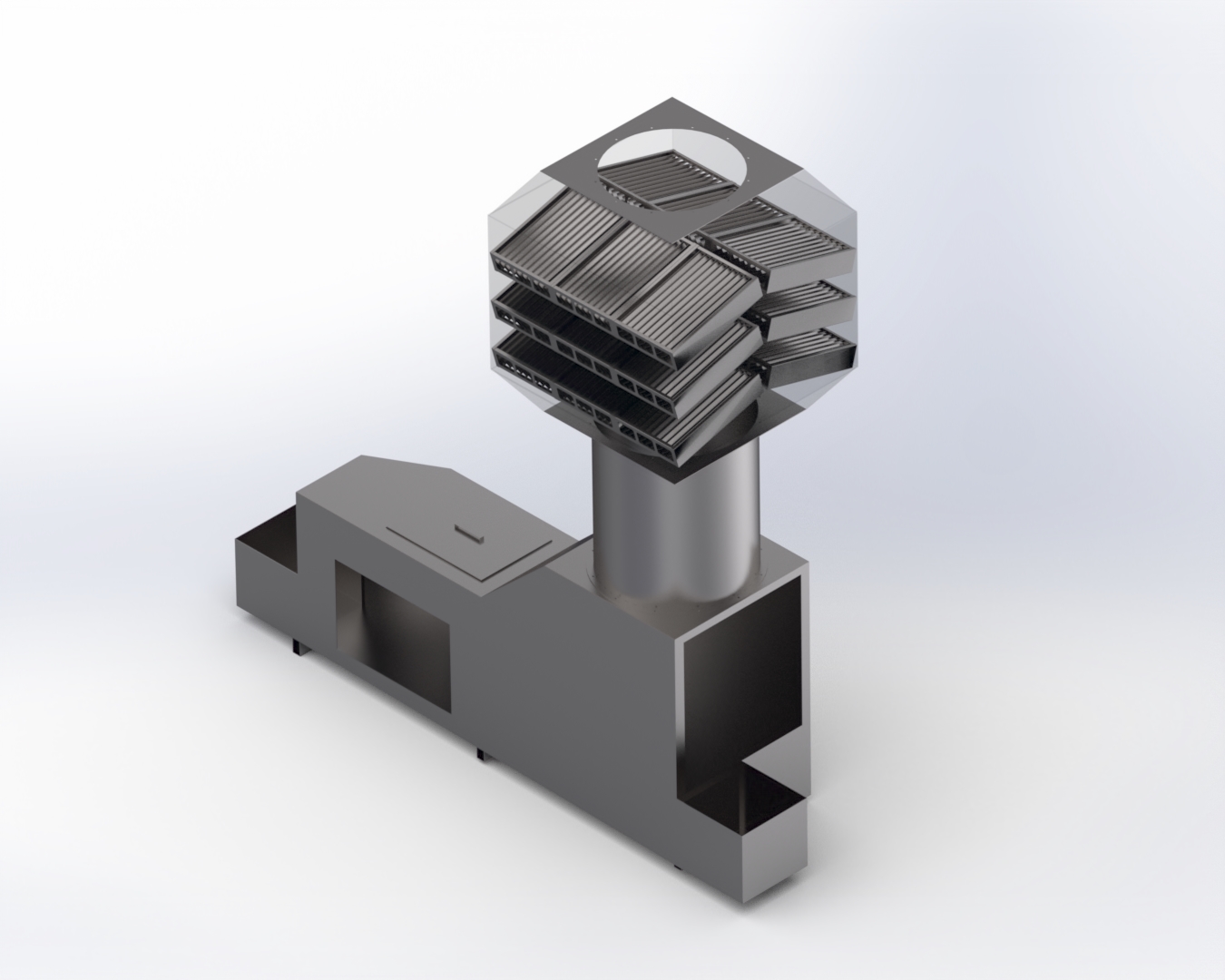

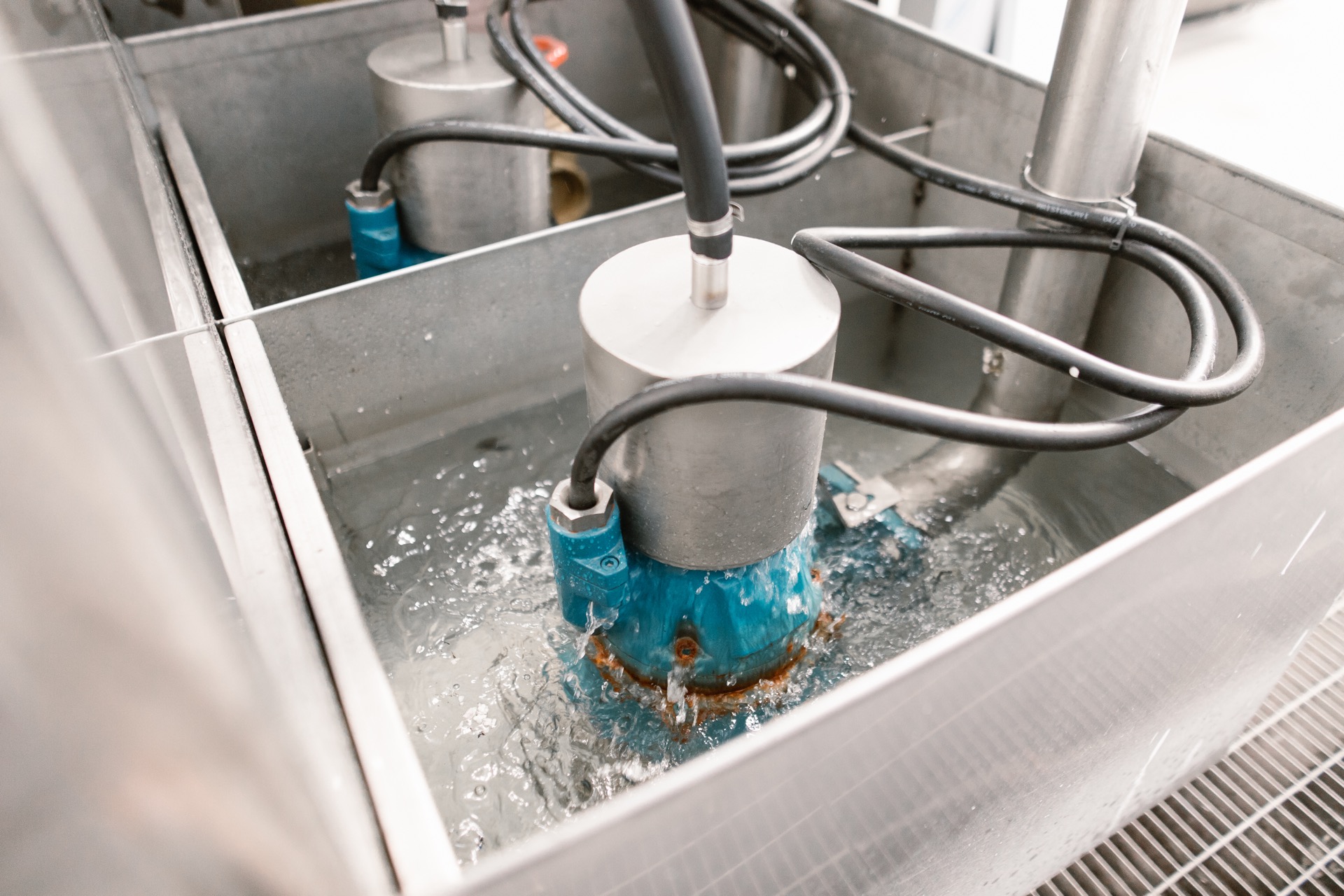

With a structure made entirely of AISI 304 stainless steel, Spraytech scrubbers have a fan (maximum size 900mm) in anti-spark Teflon material with an optional automatic washing system, forced water recirculation pumps, pump for the nebulizer nozzles (which guarantee further cleaning of fumes and better cleaning of the scrubber itself) and 12 or 18 removable drop separators also made in AISI 304 stainless steel. The large easy-sliding inspection doors ensure easier and faster maintenance, already greatly reduced by the WATERFLOW system of the Spraytech cabins. The electric gearmotors make the scrubber perfect for the Spraytech L.E.S. energy saving system. The maximum exhaust air flow rate is 20.000 m3 / h. Note: the movement of the fan is mediated by a pulley and reinforced belt which considerably reduces the vibrations emitted by the engine, minimizing noise, oscillations and wear of the parts.
